Lineare Three-hole single-lever bath combination
Produkta numurs
19965001
EAN
4005176409240
Krāsa
chrome
€
890,86
Ieteicamā mazumtirdzniecības cena ar PVN
Elegant modern design meets premium performance – the GROHE Lineare 3-hole single-lever mixer!
- GROHE SilkMove 35 mm ceramic cartridge
- with temperature limiter
- GROHE LongLife finish
- consisting of:
- single lever mixer operating element
- diverter bath/shower
- without spout
- metal stick hand shower
- metal shower hose 2000 mm
- flexible connection hoses
- connection for shower hose
- for use with 29 037 000
- for combination with 28 990 / 28 991
CAD dati

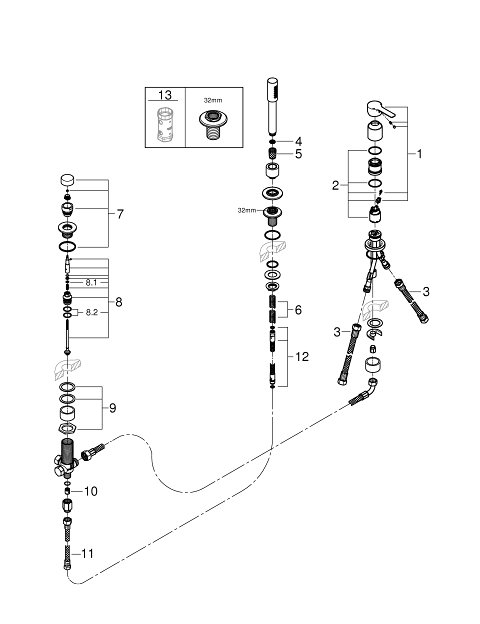

| Poz. Nr. | Prod. apraksts | Pasūtījuma Nr. |
|---|---|---|
| * Izvēles aksesuāri | ||
| 1 | Lever | 46983000 |
| 2 | Cartridge | 46374000 |
| 3 | Tube | 07227000 |
| 4 | Dirt strainer | 0700200M |
| 5 | Cone nut | 08864000 |
| 6 | Compression spring | 00869000 |
| 7 | Diverter knob | 46721000 |
| 8 | Diverter | 45443000 |
| 8.1 | Sealing washer Ø 6 x Ø 2 | 0128300M |
| 8.2 | Sealing washer | 0120500M |
| 9 | Replacement kit for shank fastening | 45444000 |
| 10 | Non-return valve | 08565000 |
| 11 | Tube | 07300000 |
| 12 | Metal shower hose | 28146000 |
| 13 | Socket spanner | 19332000* |
