Rapid SL 3-in-1 set for WC, 1.13 m installation height

Produkta numurs
38772SH0
EAN
4005176520518
Krāsa
alpine white
320,63
Ieteicamā mazumtirdzniecības cena ar PVN
Lejupielādēt specifikācijas
  • with flushing cistern GD 2, 6 - 9 l
  • consisting of:
  • Rapid SL element for WC (38 528 001)
  • Skate Cosmopolitan flush plate, alpine white (38 732 SH0)
  • wall brackets (38 558 00M)

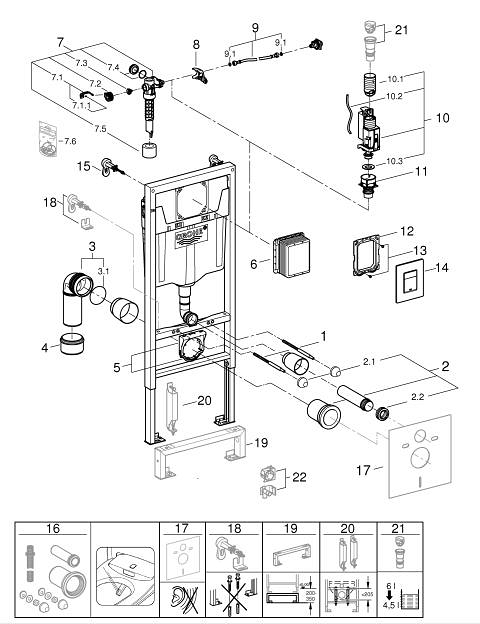

Poz. Nr. Prod. apraksts Pasūtījuma Nr.
* Izvēles aksesuāri
1 Threaded bolt 4276400M
2 WC inlet and outlet connecting set 37311K00
2.1 Basin fastening 43511SH0
2.2 Connector 37119000
3 PP-outlet bend Ø 90 mm 42327000
4 Reducer 42242000
5 Support for outlet bend 42243000
6 Inspection shaft 66791000
7 Filling valve 37095000
7.1 Lever 43734000
7.1.1 Seal 4377000M
7.2 Valve head 43536000
7.3 Membrane 4375800M
7.4 Screw cap 43735000
7.5 Valve float, 5 pcs. 4379100M
7.6 Set of seals 43722000*
8 Support device 42246000
9 Tube 42233000
9.1 Sealing washer 0319100M
10 Dual Flush discharge valve AV1 42320000
10.1 Extension for overflow pipe 42313000
10.2 Pneumatic hose 42319000
10.3 Seal 42310000
11 Valve seat for GD2 42315000
12 Wall brackets 3855800M
13 Top plate with push button 42371SH0
14 Screw 6636200M
15 Mounting frame 43207000
16 Water Connection 48561000
17 Retrofit kit for shower toilets Sensia Arena and IGS 40899000*
18 Set for noise protection 37131000*
19 Xtra wall brackets, flexible placing 38733000*
20 Extension 38629000*
21 Accessory 38779000*
22 4.5 l adapter for GD2 42333000*
23 Retro-fit set 38796000*
