Produkta apraksts
- with flushing cistern GD 2, 6 - 9 l
- for on-the-wall installations or studded walls
- powder coated steel frame, self-supporting
- for dry-cladding, completely pre-assembled
- with fixed connections
- quick adjustment, lockable
- fixing material
- TÜV approved
- 2 WC fixing bolts
- fixing device for ceramic
- WC ceramics with small bearing area (< 205 mm)
require additional accessory 38 779 000 - distance of fixing bolts 180/230 mm
- outlet bend Ø 90 mm
- depth adjustable
- reducer Ø 90/110 mm
- inlet and outlet connecting set
- flushing cistern GD 2, 6 - 9 l
- adjustment ex factory 6 l and 3 l
- pneumatic discharge valve offering 3 modes of
operation: dual flush or start/stop or single flush - water supply from left/right or back
- low noise (group I acc. to German Noise Specification)
- insulated against condensation
- angle valve ½"
- water inlet with pipe fixation
- no tools required for the installation of the inspection
shaft incl. protection during construction phase - for vertical or horizontal use
- accessories for on-the-wall installation
- including wall plate Nova Cosmopolitan
- GROHE StarLight chrome finish
- including adapter 38 338 000
Tehniskā informācija
CAD dati

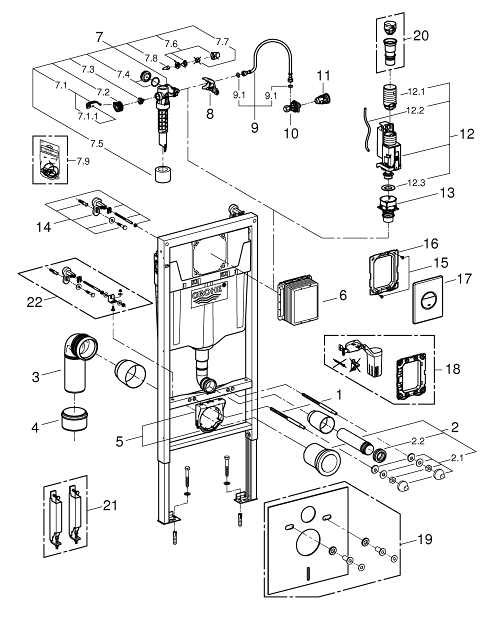

Rezerves daļas

Poz. Nr. | Prod. apraksts | Pasūtījuma Nr. |
---|---|---|
* Izvēles aksesuāri | ||
1 | Threaded bolt | 4276400M |
2 | WC inlet and outlet connecting set | 37311K00 |
3 | PP-outlet bend Ø 90 mm | 42327000 |
4 | Reducer | 42242000 |
5 | Support for outlet bend | 42243000 |
6 | Inspection shaft | 66791000 |
7 | Filling valve | 37095000 |
8 | Support device | 42246000 |
9 | Connecting hose | 42397000 |
10 | Angle valve | 42396000 |
11 | Water supply pipe connector | 38338000 |
12 | Dual Flush discharge valve AV1 | 42320000 |
13 | Valve seat for GD2 | 42315000 |
14 | Wall brackets | 3855800M |
15 | Screw | 6636200M |
16 | Mounting frame | 43207000 |
17 | Top plate with push button | 42375000 |
18 | Retrofit set | 38796000* |
19 | Set for noise protection | 37131000* |
20 | 4.5 l adapter for GD2 | 42333000* |
21 | Accessory | 38779000* |
22 | Xtra wall brackets, flexible placing | 38733000* |
